ALTO ANGLE CHECK VALVES

BACK



Salient Features :

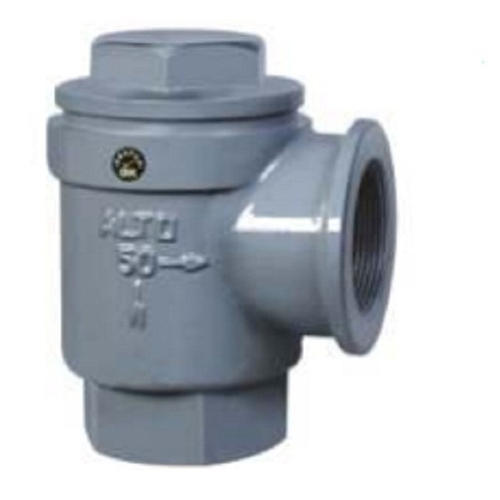

ACV - 4-23

Design : Cast Iron Angle Check Valve BSP Screwed female ends with Bronze Seat and Valve.

Range : 40mm & 50mm.

Marking : One side of the body "ALTO", "Size" & "Arrow".
Other side of the body "Tested 34kg/cm².

Utility
:
 Quite suitable for filling at filling stations.

Temp. Range : 10° C to 200° C.

Testing : Hydraulically
Test Pressure Max C.W.P
Body Seat Body/Seat
500
PSI		 34
Kg/cm²		 50
PSI		 3.4
Kg/cm²		 200
PSI		 14
Kg/cm²

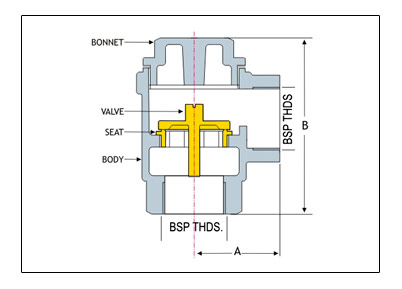

DIMENSIONS : (in mm)
Size (in mm) A B
40 72 152
50 78 162
Tolerance : ±1.5 mm in 'A' & 'B'
MATERIALS :
Components Material Specification
Body & Bonnet Cast Iron IS : 210 Gr. FG-200
Seat & Valve Bronze LTB-2 IS : 318-1981
