LEADER BRASS PRESSURE GUAGE COCKS PN 6

BACK




SPECIFICATIONS
ROUND BARREL, POLISHED BODY, METALLIC HANDLE, SCREWED FEMALE PARALLEL THREADS TO BS 21:85 OTHER FORMS OF THREADS CAN ALSO BE PROVIDED ON REQUEST.

CLASS RATING                           WORKING PRESSURE/TEMP.
PN-6                                                   6 Bar UP TO 45°C

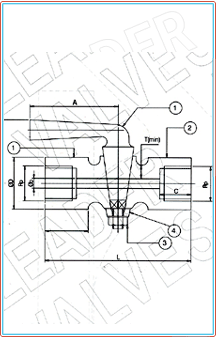

Standard Material Combination
S.No. PartName GUN METAL
1 PLUG G.M. EN 1982 Gr. CC491K
2 BODY G.M. EN 1982 Gr. CC491K
3 NUTS BRASS BS. 2872 OR BS 2874 CZ 114
4 WASHER BRASS BS. 2872 OR BS 2874 CZ 114
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
