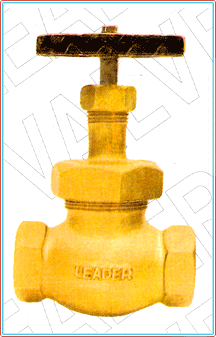

Cu-ALLOY UNION BONNET GLOBE VALVES-BS 5154/A PN 25

BACK



SPECIFICATIONS
UNION BONNET, INSIDE SCREW, RISING STEM, RENEWABLE SEAT & DISC, SCREWED FEMALE BSP PARALLER THREADS TO BS21. OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.

PRESSURE- TEMPERATURE RATINGS
PM 25/A               :               25 bar from - 10°C TO 100°C
                                         10.5 bar at 260°C

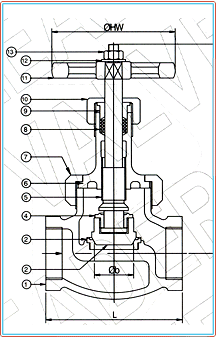

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M. EN 1982 Gr. CC491K
2 DISC 13% Cr. STEEL ASTM A 182 F6a or its equivalent
4 STEM NUT G.M EN 1982 Gr. CC491K
6 BONNET G.M. EN 1982 Gr. CC491K
8 UNION NUT G.M. EN 1982 Gr. CC491K
8 GLAND PACKING TO SUIT SERVICE CONDITION
9 GLAND 13% Cr. STEEL ASTM A 182 F6a/ ASTM A276-410 or Their equivalent
10 GLAND NUT G.M. EN 1982 Gr. CC491K
11 HANDWHEEL C.I / STEEL EN 1561 Gr. GJL200 / ANY GRADE
12 WASHER CARBON STEEL ANY GRADE
13 HAND WHEEL NUT CARBON STEEL ANY GRADE
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
