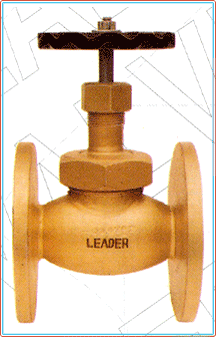

Cu-ALLOY UNION BONNET GLOBE VALVES PN 20, CLASS 150 (LIMITED)

BACK



SPECIFICATIONS
UNION BONNET, INSIDE SCREW, RISING STEM, INTEGRAL SEAT, RESILIENT SEATED, FLANGED ENDS AS PER BS 4504 PN 25 / BS 10 TABLE 'F' -ASAPPLICABLE

PRESSURE - TEMPERATURE RATINGS
PN 20:
20bar from-10°C TO 100°
CLASS 150:
280 psi from- 10°c TO 93°C

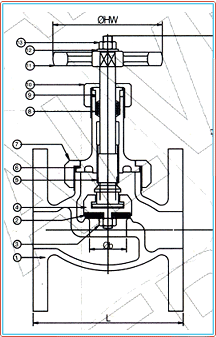

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M. EN 1982 Gr. CC491K
2 RESILIENT SEAT (RENEWABLE) RUBBER TO SUIT SERVICE CONDITIONS
3 DISC RETAINING NUT G.M EN 1982 Gr. CC491K
4 DISK HOLDER G.M EN 1982 Gr. CC491K
5 STEM BRASS/ 13% Cr. STEEL CZ114 OF BS 2872/ ASTM A182 F6a OR ITS equivalent
6 BONNET G.M EN 1982 Gr. CC491K
7 UNION NUT G.M EN 1982 Gr. CC491K
8 GLAND PACKING TO SUIT SERVICE CONDITIONS
9 GLAND G.M./BRASS EN 1982 Gr. CC491K / CZ 122 OF BS 2872
10 GLAND NUT G.M. EN 1982 Gr. CC491K
11 HANDWHEEL C.I. / STEEL EN 1561 Gr. GJL200 / ANY GRADE
12 WASHER CARBON STEEL ANY GRADE
13 HAND WHEEL NUT CARBON STEEL ANY GRADE
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
