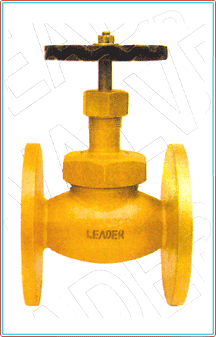

Cu-ALLOY UNION BONNET GLOBE VALVES PN 25/A, CLASS 150/A

BACK



SPECIFICATION
UNION BONNET, INSIDE SCREW, RISING STEM, RENEWABLE SEAT & DISC, FLANGED ENDS PER BS4504 PN 25/ BS TABLE F.

PRESSURE-TEMPERATURE RATINGS
PN25/B      :          25 bar from-10°C to 100°C
                                             10.5 bar at 186°C

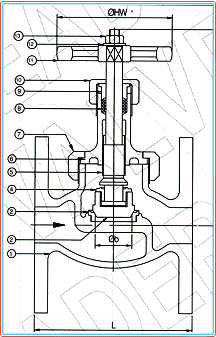

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M EN 1982 Gr. CC491K
2 DISC 13% Cr. STEEL ASTM A182 F6a or its equivalent
3 BODY SEAT RING ASTM A182 F6a or its equivalent
4 STEM NUT G.M EN 1982 Gr. CC491K
5 STEM 13% Cr. STEEL ASTM A182 F6a/ ASTM A276-410 or Their equivalent
6 BONNET G.M. EN 1982 Gr. CC491K
7 UNION NUT G.M. EN 1982 Gr. CC491K
8 GLAND PACKING TI SUIT SERVICE CONDITIONS
9 GLAND 13% Cr. STEEL ASTM A182 F6a / ASTM A276-410 or their equvalent
10 GLAND NUT G.M. EN 1982 Gr. CC491K
11 HANDWHEEL C.I / STEEL EN 1561 Gr. GJL200/ ANY GRADE
12 WASHER CARBON STEEL ANY GRADE
13 HAND WHEEL NUT CARBON STEEL ANY GRADE
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
