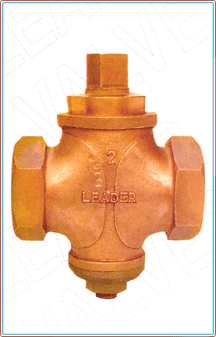

Cu-ALLOY MAIN COCKS PN 6

BACK




SPECIFICATIONS
TAPER PLUG COCK, NON LUBRICATED TYPE SCREWED FEMALE BSP PARALLEL THREADS TO BS 21 OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.

PRESSURE-TEMPERATURE RATINGS
6 bar at 100°C

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M. EN 1982 Gr. CC491
2 PLUG G.M. EN 1982 Gr. CC491
3 WASHER G.M. EN 1982 Gr. CC491
4 NUTS CARBON STEEL BS 916
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
