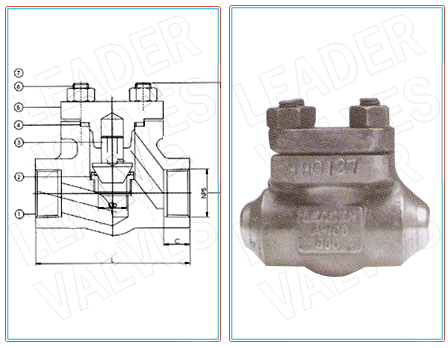

FORGED STEEL CHECK VALVES-BS5352, ASME B16.34 CLASS-600, 800, 1500 & 2500

BACK




Trim Material Combination
TrimNo Seat Ring Face Part No.2 Disc Ring Face Part No.3
1 F6a/13%Cr F6a/13%Cr
2 F304 F304
5 STELLITE STELLITE
6 Cu-Ni F6a/13%Cr
8 STELLITE F6a/13%Cr
9 MONEL MONEL
10 F316 F316
13 ALLOY 20
Standard Material Combination
S.No. PartName Carbon Steel to ASTM A105 Carbon Steel to ASTM A350 Alloy Steel to ASTM A182 F1 Alloy Steel to ASTM A182 F11 Alloy Steel to ASTM A182 F22 Alloy Steel to ASTM A182 F9 Sainless steel to ASTM A182 F304 Sainless steel to ASTM A182 F316 Sainless steel to ASTM A182 F304L Sainless steel to ASTM A182 F316L
1 BODY A105 F6a A350 LF2 A182 F1 A182 F11 A182 F22 A182 F9 A182 F304 A182 316 A182 F304L A182 F316L
4 GASKET Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil
5 COVER A105 F6a A350 LF2 A182 F1 A182 F11 A182 F22 A182 F9 A182 F304 A182 316 A182 F304L A182 F316L
6 STUDS A193 B7 A193 L7 A193 B7 A193 B16 A193 B16 A193 B16 A193 B8 A193 B8 A193 B8 A193 B8
7 NUTS A194 2H A194 4 A194 2H A194 4 A194 4 A194 8 A194 8 A194 8 A194 8 A194 8
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
