CAST IRON GATE VALVES - BS 5163 PN10, PN16

BACK

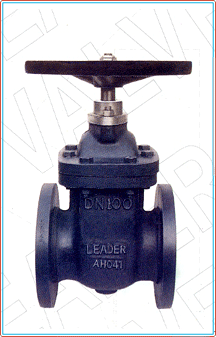

CAST IRON GATE VALVES

SPECIFICATIONS

BOLTED BONNET, INSIDE SCREW & NON RISING STEM, FLANGED ENDS AS PER BS 4504 PN16/BS 1560 CLASS 150/ ANSI B16.1 CLASS 125-AS APPLICABLE.

GLAND TYPE STUFFING BOX
TORODIAL SEALING RINGS

PRESSURE / TEMPERATURE RATINGS

BS 5163, 16 bar

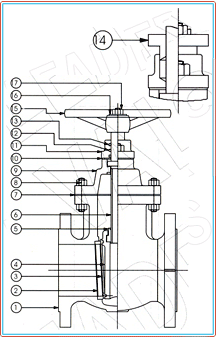

**Standard Material Combination**
S.No.	PartName	S.S STEM, Cu ALLOY FACED	S.S TRIM
1	BODY	C.I TO EN 1561 Gr. GJL200	C.I TO EN 1561 Gr. GJL200
2	BODY SEAT FACING	G.M. TO EN 1982 Gr. CC491K	S.S TO BS 970 Gr. 410 S21/ASTM A217 CA15/ASTM A182 Gr. F6a OR THEIR Eq.
3	WEDGE FACING	G.M. TO EN 1982 Gr. CC491K	S.S TO BS 970 Gr. 410 S21/ASTM A217 CA15/ASTM A182 Gr. F6a OR THEIR Eq.
4	WEDGE	C.I. TO EN 1561 Gr. GJL200	C.I TO EN 1561 Gr. GJL200
5	STEM NUT	G.M. TO EN 1982 Gr. CC491K	SG IRON TO ASTM A439 D2 OR S.S TO BS 970Gr. 431 S29
6	STEM	S.S TO BS 970 Gr. 410 S21/ASTM A276-410/ASTM A 182	S.S TO BS 970 Gr. 410 S21/ASTM A276-410/ASTM A182 Gr. F6a
7	BONNET GASKET	SUITABLE FOR THE DUTY	SUITABLE FOR THE DUTY
8	BOLTS & NUTS	CARBON STEEL TO BS 916	CARBON STEEL TO BS 916
9	BONNET	C.I. TO EN 1561 Gr. GJL200	C.I. TO EN 1561 Gr. GJL200
10	STUFFING BOX GASKET	SUITABLE FOR THE DUTY	SUITABLE FOR THE DUTY
11	STUFFING BOX	C.S. TO ASTM A 216 WCB	C.S. TO ASTM A 216 WCB
12	PRESSURE SEAL RINGS	EPDM RUBBER	EPDM RUBBER
13	DIRT SEAL RING	EPDM RUBBER	EPDM RUBBER
14	GLAND	C.I. TO EN 1561 Gr. GJL200	C.I. TO EN 1561 Gr. GJL200
15	HANDWHEEL	C.I. TO EN 1561 Gr. GJL200	C.I. TO EN 1561 Gr. GJL200
16	WASHER	CARBON STEEL (ANY GRADE)	CARBON STEEL (ANY GRADE)
17	NYLOCK NUT	CARBON STEEL TO BS 916	CARBON STEEL TO BS 916

NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
