CAST IRON HORIZONTOL CHECK VALVES - BS 5153 PN 10

BACK




SPECIFICATIONS
RIGHT ANGLE PATTERN, BOLTED COVER, FLANGES AS PER BS 4504 DIN 2532 OR 2533-AS APPLICABLE


Standard Material Combination

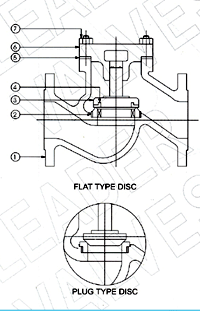

S.No. PartName Cu. ALLOY TRIM S.S TRIM
1 BODY C.I. TO EN 1561 Gr. GJL200 C.I. TO EN 1561 Gr. GJL200
2 BODY SEAT RING G.M. TO EN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ASTM A182 Gr. F6a OR THEIR Eq.
3 DISC (INTEGRAL) G.M. TO EN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ASTM A182 Gr. F6a/ASTM A217 Gr. CA15 OR THEIR Eq.
3 DISC WITH SEPERATE FACING RING C.I TO EN 1561 Gr. GJL200 C.I TO EN 1561 Gr. GJL200
4 DISC FACING RING G.M. TO EN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ASTM A182 Gr. F6a OR THEIR Eq.
5 GASKET SUITABLE FOR THE DUTY SUITABLE FOR THE DUTY
6 COVER C.I TO EN 1561 Gr. GJL200 C.I. TO EN 1561 Gr. GJL200
7 NUTS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
7 STUDS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
