CAST STEEL SWING CHECK VALVE-BS 1868:75 CLASS

BACK





Trim Material Combination
TrimNo Seat Ring Face Part No.2 Disc Ring Face Part No.3 Hinge Pin Part No.5
1 F6a/13%Cr. F6a/13%Cr. A276 410
2 F-304 F-304 A276 410
5 STELLITE STELLITE A276 410
6 Cu-Ni F6a/13%Cr. A276 410
8 STELLITE F6a/13%Cr. A276 410
9 MONEL MONEL A276 410
10 F316 F316 A276 410
13 ALLOY 20 ALLOY 20 A276 410



Standard Material Combination

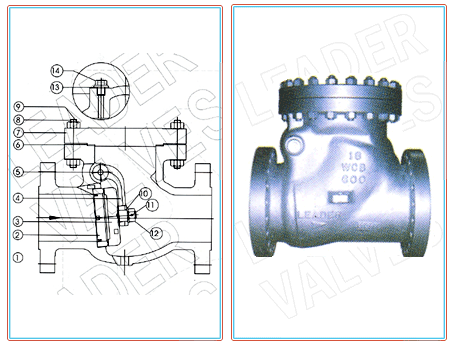

S.No. PartName Alloy steel to ASTM type WC9 Carbon Steel to ASTM type WCB Carbon Steel to ASTM type LCB Alloy steel to ASTM type WC1 Alloy steel to ASTM type WC6 Alloy steel to ASTM type C5 Alloy steel to ASTM type C12 Stainless steel to ASTM type CF8 Stainless steel to ASTM type CF8M Stainless steel to ASTM type CF3 Stainless steel to ASTM type CF3M
8 STUDS A 193 B16 A193 B7 A320 L7 A193 B7 A193 B16 A193 B16 A193 B8 A193 B8 A193 B8M A193 B8 A193 B8M
1 BODY A217 WC9 A216 WCB A352 LCB A217 WC1 A217 WC6 A217 C5 A217 C12 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
5 HINGE A217 WC9 A216 WCB A352 LCB A217 WC1 A217 WC6 A217 C5 A217 C12 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
6 GASKET Stainless Steel + Graphoil Stainless steel + Graphoil Stainless steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil Stainless Steel + Graphoil
7 COVER A217 WC9 A216 WCB A352 LCB A217 WC1 A217 WC6 A217 C5 A217 C12 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
9 NUTS A194 4 A194 2H A194 4 A194 2H A194 4 A194 4   A194 4 A194 8M A194 8 A194 8M
10 WASHER A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410
11 PIN STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL   STEEL STEEL

12 DISC NUT A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410
13 PLUG GASKET C.A.F. C.A.F. C.A.F. C.A.F. C.A.F. C.A.F. C.A.F. C.A.F. C.A.F. C.A.F. C.A.F.
14 PLUG A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410 A276 410
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
