Cu-ALLOY HOROZONTAL LIFT CHECK VALVES PN 16 (LIMITED)

BACK





SPECIFICATIONS
SCREWED IN COVER, INTEGRAL SEAT, RESILIENT SEATED, SCREWED FEMALE BSP PARALLEL THREADS TO BS 21. OTHER FORMS OF THREADS CAN BE PROVIDED ON REQUEST.

PRESSURE TEMPERATURE RATINGS
16 bar FROM-10°C TO 100°C

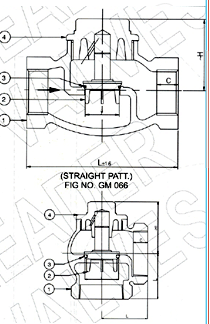

Standard Material Combination
S.No. PartName GUN METAL
1 BODY G.M. EN 1982 Gr. CC491K
2 DISC G.M. EN 1982 Gr. CC491K
3 O-RING RUBBER
4 COVER G.M. EN 1982 Gr. CC491K
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
