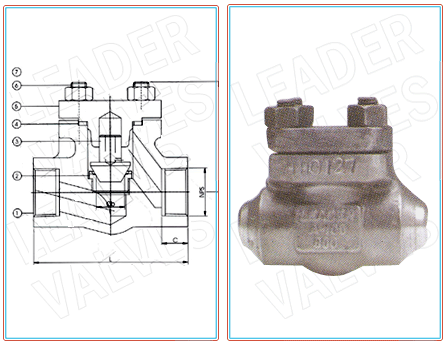

FORGED STEEL CHECK VALVES-BS5352, ASME B16.34 CLASS-600, 800, 1500 & 2500

BACK

**Trim Material Combination**
TrimNo	Seat Ring Face Part No.2	Disc Ring Face Part No.3
1	F6a/13%Cr	F6a/13%Cr
2	F304	F304
5	STELLITE	STELLITE
6	Cu-Ni	F6a/13%Cr
8	STELLITE	F6a/13%Cr
9	MONEL	MONEL
10	F316	F316
13	ALLOY 20	ALLOY 20

**Standard Material Combination**
S.No.	PartName	Carbon Steel to ASTM A105	Carbon Steel to ASTM A350	Alloy Steel to ASTM A182 F1	Alloy Steel to ASTM A182 F11	Alloy Steel to ASTM A182 F22	Alloy Steel to ASTM A182 F9	Sainless steel to ASTM A182 F304	Sainless steel to ASTM A182 F316	Sainless steel to ASTM A182 F304L	Sainless steel to ASTM A182 F316L
1	BODY	A105 F6a	A350 LF2	A182 F1	A182 F11	A182 F22	A182 F9	A182 F304	A182 316	A182 F304L	A182 F316L
4	GASKET	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil	Stainless steel + Graphoil
5	COVER	A105 F6a	A350 LF2	A182 F1	A182 F11	A182 F22	A182 F9	A182 F304	A182 316	A182 F304L	A182 F316L
6	STUDS	A193 B7	A193 L7	A193 B7	A193 B16	A193 B16	A193 B16	A193 B8	A193 B8	A193 B8	A193 B8
7	NUTS	A194 2H	A194 4	A194 2H	A194 4	A194 4	A194 8	A194 8	A194 8	A194 8	A194 8

NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
