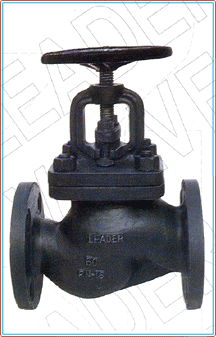

CAST IRON GLOBE VALVES -  BS 5152 PN 10, PN 16

BACK



SPECIFICATIONS
STRAIGHT PATTERN, BOLTED BONNET, O/S & YOKE TYPE, RISING STEM, FLANGED ENDS AS PER BS 4504 DIN 2532 OR DIN 2533- AS APPLICABLE


Standard Material Combination
S.No. PartName Cu. ALLOY TRIM S.S TRIM
1 BODY C.I. TO EN 1561 Gr. GJL200 C.I TO EN 1561 Gr. GJL200
2 BODY SEAT RING Cu- ALLOY TO EN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ ASTM A182 Gr. F6a/ ASTM
3 DISC FACING RING Cu- ALLOY TOEN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ ASTM A182 Gr. F6a/ ASTM
4 DISC (INTEGRAL) Cu- ALLOY TO EN 1982 Gr. CC491K S.S. TO ASTM A182 Gr. F6a OR THEIR Eq.
4 DISC (WITH FACING RINGS) CAST IRON TO EN 1561 Gr. GJL200 CAST IRON TO BS 1452 Gr. 220
5 LOCKING WASHER BRASS TO BS2873 STAINLESS STEEL TO AISI 304
6 STEM NUT Cu- ALLOY TO EN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ ASTM A182 Gr. F6a/ ASTM
7 STEM BRASS TO BS2874 CZ114 OR BS 2872 CZ114 S.S TO BS 970 Gr. 410 S21/ ASTM A182 Gr. F6a/ ASTM
8 GASKET C.A.F TO BS 1832 C.A.F. TO BS 1832
9 BONNET C.I. TO EN 1561 Gr. GJL200 C.I. TO EN 1561 Gr. GJL200
10 NUTS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
10 STUDS CARBON STEEL TO BS 916 CARBON STEEL TO BS 916
11 GLAND PACKING TO SUIT SERVICE CONDITIONS TO SUIT SERVICE CONDITIONS
12 GLANDE FOLLOWER Cu-ALLOY TOEN 1982 Gr. CC491K S.S TO BS 970 Gr. 410 S21/ASTM A182 Gr. F6a/ ASTM
13 GLAND FLANGE C.I. TO EN 1561 Gr. GJL200 C.I. TO EN 1561 Gr. GJL200
14 T-HEAD BOLTS CARBON STEEL (MIN. UTS 392 N/mm2) S.S TO BS 970 Gr. 410 S21/ASTM A182F6A/ASTM A276-410 OR THEIR Eq.
14 T-HEAD NUTS CARBON STEEL (MIN. UTS 392 N/mm2) S.S TO BS 970 Gr. 410 S21/ASTM A182F6A/ASTM A276-410 OR THEIR Eq.
15 YOKE BUSH AL. BRONZE TO EN 1982 Gr. CC333G OR EN 1982 Gr. CC AL. BRONZE TO EN 1982 Gr. CC333G OR EN 1982 GR. CC
16 LOCKING SCREW CARBON STEEL CARBON STEEL
17 HANDWHEEL C.I TO EN 1561 Gr. GJL200 C.I. TO EN 1561 Gr. GJL200
18 WASHER CARBON STEEL CARBON STEEL
19 NUT FOR WHEEL CARBON STEEL CARBON STELL
NOTE : The above data is subject to change without notice due to our continuing product improvement programme.
